Brief Introduction

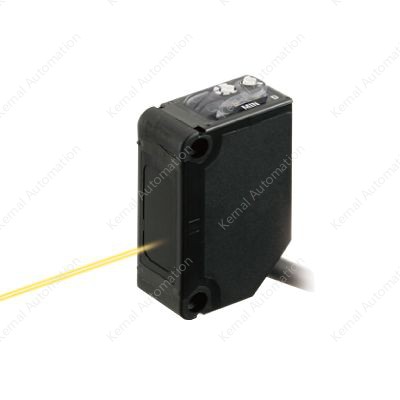

CX-444

Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL/c-UL Certification<br/> Output operation Light-ON<br/> Sensing range 50 mm 1.969 in<br/> Min. sensing object ø0.3 mm ø0.012 in opaque object (Completely beam interrupted object)(Setting distance between emitter and receiver: 50 mm 1.969 in)<br/> Repeatability(perpendicular to sensing axis) 0.02 mm 0.001 in or less<br/> Supply voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less<br/> Current consumption Emitter: 10 mA or less<br/> Receiver: 10 mA or less<br/> Output PNP open-collector transistor<br/> - Maximum source current: 20 mA<br/> - Applied voltage: 30 V DC or less (between output and +V)<br/> - Residual voltage: 1.5 V or less (at 20 mA source current)
